great north of scotland Railway WAGONS
GNoSR Diagram 3S - 3 Plank Open Wagon
Great North of Scotland Railway Diagram 3S 8 ton open wagon.
This release is a full kit with 3D printed body, underframe, detailed floor, brake gear, choice of axleguards, springs & axleboxes and choice of buffer type. Add metal wheels, sprung couplings and sprung buffers.
The Diagram 3S wagons were built from 1887 to 1911. Some 2205 remained in service in 1923 with 131 in service in 1940 and 14 making in to nationalisation.
Early wagons featured the rather unusual arrangement of having a drop door on only one side.

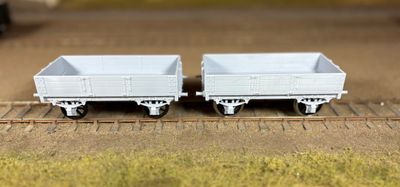

Choose either the single side door or the door on both sides version.
Availability news via subscribers
great north of scotland Railway WAGONS
GNoSR Diagram 6S and 7S - 3 Plank Open Wagon
Great North of Scotland Railway Diagram 6S & 7S 10 ton open wagon.
This release is a full kit with 3D printed body, underframe, detailed floor, brake gear, choice of axleguards, springs & axleboxes and choice of buffer type. Add metal wheels, sprung couplings and sprung buffers.
Similar in appearance to the diagram 3S but with steel underframe. the dial 6S has a drop door fitted on one side only and the diag 7S has it on both sides.
(Temporary photo of 3S)
Available only to subscribers
great north of scotland Railway WAGONS

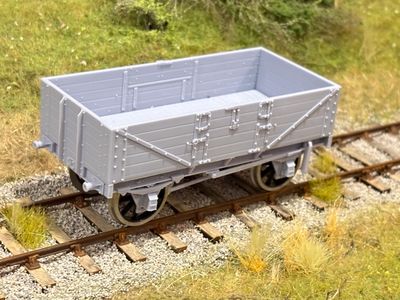

GNoSR 10S - 5 Plank Open Wagon
Great North of Scotland Railway Diagram 10S 8 ton open wagon.
This release is a full kit with 3D printed body, underframe, detailed floor, brake gear, choice of axleguards, springs & axleboxes and buffers. Add metal wheels, sprung couplings and sprung buffers.
100 Diagram 10S wagons were built from 1908 to 1909. Some being used on Loco Coal duties. We include transfers to cover both revenue service and loco coal.
Availability news via subscribers
great north of scotland Railway WAGONS

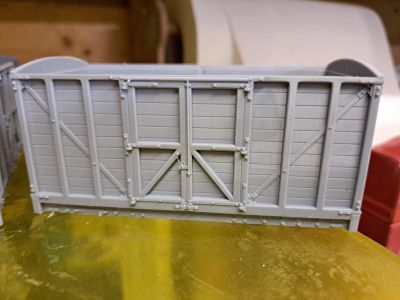

GNoSR 14S/15S/16S - Covered Wagon
Great North of Scotland Railway covered wagons.
This release is a full kit with 3D printed body, underframe, detailed floor, brake gear, choice of axleguards, springs & axleboxes and buffers. Add metal wheels, sprung couplings and sprung buffers.
Both wooden and steel underframe options are modelled along with the later batches that were fitted with end hatches. It is also possible to model the passenger rated diagram 75 vehicles.
Available to subscribers only
